寶德188681角座閥資料,進口德國寶德產品

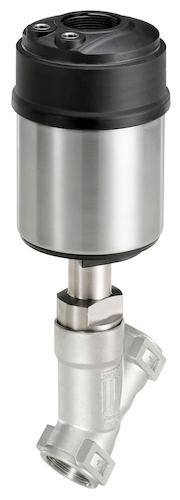

寶德氣動操作的二位二通斜座閥 ELEMENT
Type 2100 / 商品編號 188681
根據 BUrkert 公司針對模塊化過程閥和傳感技術的經營理念,2100 型斜座閥的設計滿足所有的實際應用要求,即使在惡劣的使用條件下。通過經驗證的、能夠進行自動調整的頂部皮碗式主軸包裝結構,可以實現長的使用壽命和zui高的密封性。其設計允許將自動化單元簡單地集成到所有結構分級中:從電氣/光學位置反饋裝置,經過氣動的控制裝置,直至集成式總線接口和防爆的設備類型。高度集成的系統由閥門和自動化單元構成,其特征在于設計的緊湊性和表面光滑性、集成式的控制空氣管道、防護級 IP65/67 以及高化學抗性。
名稱
Value
Unit
Type 2100
Actuator version ELEMENT
Main valve operating principle Angle seat valve
Valve piloting type Pneumatic
Nominal pressure min 0 bar
Nominal pressure max 20 bar
Control pressure min 4.8 bar
Control pressure max 10 bar
Control pressure vacuum No
Temperature environment min 0 °C
Temperature environment max 60 °C
Temperature medium min -10 °C
Temperature medium max 185 °C
Kv value (water) 11 m3/h
Pressure Class (PN) PN 25
Pressure class (LB) 150 LB
CIP capable Yes
SIP capable Yes
Control function A - normally closed (NC)
Fluidic port connection number 2
Valve function number of switching positions 2
Valve function manual actuation No
寶德188681角座閥資料,進口德國寶德產品
Valve construction Valve complete
Seat seal material PTFE (Polytetrafluorethylene)
Orifice 20 mm
Body nominal size 20 mm
Body nominal size (IN) 3/4 inch
Valve body material Stainless steel
Valve body surface treatment internal unmachined
Valve body surface treatment external untreated
Port connection 1 type Weld end
Port connection 1 pipe standards 1 ISO 4200
Port connection 1 pipe standard 2 DIN 11866 serie B
Port connection 1 pipe standard 3 DIN EN ISO 1127
Port connection 1 size DN DN 20
Port connection 1 inner diameter (mm) 23.7 mm
Port connection 1 wall thickness (mm) 1.6 mm
Port connection 1 outer diameter (mm) 26.9 mm
Flow Below seat
Pipe material Stainless steel
Interface to actuator metric
Actuator size 70 mm
Actuator material PPS (Polyphenylene sulphide)
Control air connection material Plastic
Control air connection type Plug-in connection (hose)
Control air connection diameter (mm) 6 mm
Control air connection diameter (inch) 1/4 inch
Control air connection 1 pre-mounted not equipped
Control air connection 2 pre-mounted Silencer 902662
Control air connection position in line direction
Piston seal material FKM (Fluor rubber)
Control cone No
Swivel plate yes
Swivel plate material Stainless steel
Actuator increased chemical resistance No
Actuator with larger stroke No
Actuator with reduced stroke No
O-ring between cover and bush No
Position monitoring via magnetic piston No
Seal nipple body material Graphite
Packed seal enclosed Yes
Vacuum version No
Additional manual actuation included No
Manufacturer´s test certificate 3.1 included No
Weight 1,700000 kg
Weight 1,700000 kg
寶德188681角座閥資料,進口德國寶德產品
