• 所有便攜式和固定安裝式呼吸空氣過濾系統都符合或超過OSHA1910.134,加拿大Z180.1呼吸空氣標準和不列顛標準BS-EN 12021:1999"呼吸裝置防護"標準 |
呼吸空氣過濾箱(The Breather Box™) 呼吸空氣過濾箱是設計用于為特定數量工人提供呼吸空氣的便攜式D級空氣過濾系統。該過濾系統將來自呼吸空氣壓縮機的空氣提供給呼吸器用戶,呼吸空氣是D級質量而且帶有CO和/或氧氣監控器。
一級過濾器過濾掉大量的水和微粒并有一個自排泄裝置。第二級過濾器則除掉細小的油霧、霧狀物和其細小的顆粒,第三級過濾器則濾除有機蒸汽和異味并有一個手動泄放裝置。在全部的三級過濾器上的更換指示器都是標準的。對 .01微米的過濾效率是99.99%。所有的呼吸空氣過濾箱都是設計垂直而靠近用于阻止內部污染。
標準的一氧化碳(CO)在線監控器探測可連續工作在9V一次性電池,8-16VDC或者115VAC電源上。外部聲光報警在一氧化碳(CO)高濃度時啟動。處型號為BB15-CO的過濾箱以外,所有設備都提供有遠程報警裝置。附屬設備接點(POA)箱可以將呼吸器的使用距離延伸到300英尺距離以外。
Custom Designed Breather Box™ Options
Contact Customer Service for Details |
||

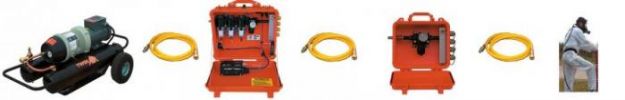

呼吸空氣系統典型構件(Typical Elements of a Breathing Air System) 呼吸空氣壓縮機 D級過濾系統 空氣分配系統(POA) 呼吸器The above pictured items make up a typical Grade-D breathing air system. Depending on the number of workers to be served by the system and whether the system needs to be portable or a fixed plant system, the size and complexity of the system may change. However, the basic elements above must be present. In order to properly size the breathing air system, it is absolutely essential that the user’s first decision is to decide the type and quantity of airline respirator(s) to be used. A quick recap of the airline respirator types and their required flow and pressure requirements is essential. All airline respirators are referred to by NIOSH as Type-C or Type-CE respirators. NIOSH approved CE respirators are designed for abrasive blasting but still require the same air flow as Type-C respirators.上圖所示的是典型的D級呼吸空氣系統的組成結構。系統是使用便攜式或固定式、系統大小和復雜程度的變化都取決于使用人數。因此完全有必要先讓使用者來決定設備型號、數量來確定空氣線路呼吸器的使用情況。 |
|||
